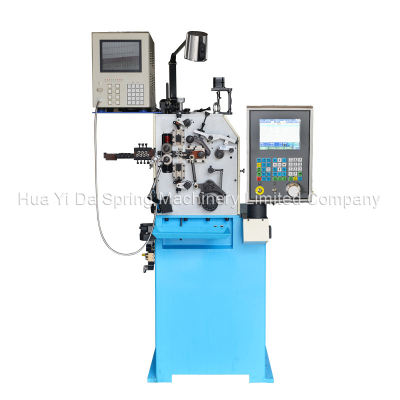

HYD-208
Two-axis computer spring machine

1.Taiwan's imports of used computer purchase and import servo motor controlsystem;

2.Computer-Chinese interface, easy operation, accurate positioning, the computer can control three to eight servo motors, all motors can be run simultaneously or individualy;

3.Accuracy of detection with tracking system installed if failure of the product can automatically shut down;

4.According to the work on the screen, you can always point to the outer diameter of the product such as an
amendment.

5.Automatic self-lubricating mechanical parts supply design, to ensure the long-running equipment;

6.When the wireless,disconnected,automatically shut down when the line wrapped aroun the wire frame desigh and automatic acceieration, so the production easier and more effective.;

7.For production straight spring,pagoda spring,extension spring,rectangle spring,wire forming,spring steel skin vortex,and all kinds of fancy clockwork spring,spring complex and difficult shaped.

Technical parameters:
Model                                                                HYD-208
Diameter Range                                                 φ0.15-φ0.8mm
Maximum diameter                                             20mm
The fastest production speed                              550pcs/min
Wire feeding length                                            Unlimited
Wire feeding speed                                            1200m/min
Delivery spools                                                  Y Axis 1kw
Camshaft                                                           X Axis 1kw
Screen display                                                   X:359.9 Y:9999.9mm
Maximum command value                                 Color/Chinese/English
Minimum order value                                         X:0.1 Y:0.01mm
Order to accommodate the value of                 150Programs Max.999Lines for each program
Machine size                                                     900*850*1600mm
Power                                                               220V3p50/60HZ
Weight                                                              400kg
