Summary:
Commonly known as the universal machine, the upgrade section 35L. It has four sets of feeding structure, breaking the spring diameter limit, more travel, to processing diameter 0.8mm-4.2mm of products for a wider range spring; plus a fourth axis reeling forming products more compatible, a cost-effective product of medium-sized Wire diameter models.

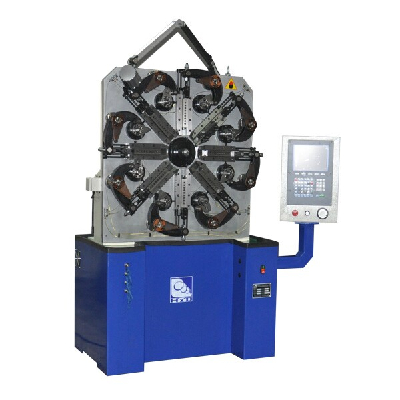

Three-axis multi function computer spring machine
 Technical parameters
 Model                                       HYD-40T-3A
 Diameter                                  φ0.8~4.2mm
 Max OD                                    Maxφ60mm
 Feed speed                              0~110m/min
 Cam command value               ±0.1°~±359.9°
 Transmission speed cam          0~60RPM
 Wire feed servo motor               5.5KW
 Can servo motror                       5.5KW
 Turn the servo motor core         1.0KW
 Power                                         380V±10%V50Hz
 Dimension(L×W×H)                   1600×1300×1900mm
Weight                                         1800kg



Features of the machine:
1,   Wire feeding: Has four sets of feeding structure, increase the stroke, so that it can product the spring those diameter up to 4.2mm, to adapt to a wider range.
2,    Quill Servo Motor: this part is refinedly made of aluminum alloy, max speed is up to 3000 degrees per second (360 degrees in a circle as calculated) thus the rotation angle of the spindle less work without affecting the spindle speed. In addition to the core switch can be rotated so that space to complete some complex shapes, it can also be used to control the pitch of the spring, so the pitch can be done to simplify the transfer of digital control machine processes, thus reducing setup times.
3,    Servo motors Angular: Angular is a digital servo means to achieve freedom CORNER purposes. Computer-controlled bending angle can be changed at any time, without the need to adjust the mechanical parts, thereby reducing setup times, this bending system, the maximum speed within 0.017 seconds of the wire into 90-degree corners, and folded into 180 degrees only need 0.034 seconds! Also knuckle device can swing 25 degrees, convenient knuckle at certain angles inside.
4,     3-axis computer: three-axis synchronous computer system uses a high-precision servo motor and computer control, users simply use the computer program, you can easily create precise dimensions and angles complex spring, another computer choreographed programs can be stored and called. The system uses digital control, color Chinese / English interface, easy operation, saving setup times, this model can also be installed servo motor knuckle, used to produce more complex springs, such as German-style hook extension spring, wire forming and other complex products.
