Model Features:
1. Get the whole line box can move back and forth, molding line box never need to send back line,  forming a more stable,The production of long products, send me a wholeline after the shift,  the molding space larger and more convenient.
2. The independent external twisting head movements, you can not quit when the wire forming the inner curved groove, more  convenient and efficient commissioning of the center.
3. Twisting head as a whole can be shifted around, you can make room for more complex shapes molded products.
4. The cutter can be moved back and forth, forward cut short when processing products, the production of a more stable,  long product when processing knife back,Forming a larger space, the product will not touch the cutter.


Technical parameters

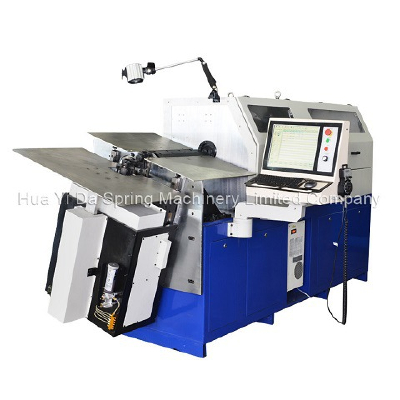

Model                                                       HYD-80-8A
Axis Count                                               8 axis
Max Feeding speed                                 80m/min
Wire Size Range                                      low carbon steel:3-8mm   high-carbon steel:2-5mm
Control system                                        1set
Wire feeding axis count                           3 pairs

Bending frame parallelism                      0.1-1mm
3D maximum dimensions                       1000*1000*600mm
Minmum length of angel                         4 times wire diameter
Pallet                                                      1000*600*4mm
Machine Size                                          3500*1000*1800mm
Weight                                                    3500kg

Hua Yida Spring machinery limited company, the production base; located in No.49 Yanhedong Street,Ailingkan Village,DalingshanTownDonguan City which is Technology Research and Development Center. Huayida established in Guangming new district,Shenzhen city. The main products are universal computer spring machine ,Computer press spring machine , wire forming spring machine, spring machine tool accessories, with various seriesof models. The company has more than 50 mechanical equipment, annual production capacity is more than 1000 units.

HuaYida cooperated with Taiwan Kun Joo Co., Ltd. in 2010.We work together to create the best technology for the core of brand-name enterprises,integrates production and sales as one of professional CNC spring machinery and equipment production enterprises and equipment research and development, design, manufacturing and sales. The company has a professional R & D personnel, the machining process of product design, absorb advanced foreign advanced enterprise products in the design of perfection. The assembly frontline staff are skilled operation skills, with rigorous work attitude and skills, to ensure product quality requirements.The control system and motor are from Japan,Taiwan and directly use their related products. Products has a transmission line of high precision, forming a stable accurate movement, the appearance of novel, digital control, color Chinese English interface,the operation is simple and convent,which attact majority of customers.

The purpose of our company is to improve the quality of our research and development, quality, service, to maintain positive interaction with customers, to provide complete after-sale service . The products of the company customer service service department adhering to the "service first, customer first service concept, to provide a full range of customer service products for the majority of customer service, answer customer use appear in the process of product sales problems. We could freely provide customers who buy our machine a chance to learn the production operation so that the customer could master the product use , maintenance etc.Strong technical force, advanced production equipment, modern management system make Hua Yida Spring Machinery Co. Ltd. to faster development.In the future increasingly fierce competition in the market, the company will, as always, insist on : "perfect quality, good service."
