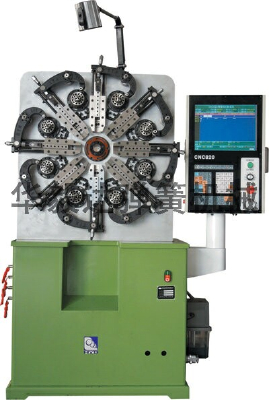

HYD-20T-3A
Three- axis multi function computer spring machine

Commonly known as the universal machine,  It has 3 sets of feeding structure, breaking the spring diameter limit, more travel, to processing diameter 0.2mm-2.3mm of products for a wider range spring; plus a fourth axis reeling forming products more compatible, a cost-effective product of medium-sized Wire diameter models.

Technical parameters
Model                                           HYD-20T-3A
Diameter production                    φ0.2-2.3mm
Max Feeding Speed                   141m/min
Wire up the value of                    Unlimited
Direct storage programs             1000
X-axis motor output                    2.7KW
Y-axis motor output                    2.7KW
Z-axis motor output                    1.0KW
Machine size                               1400×900×1600mm
Voltage                                       380V
Weight                                        700kg


Features of the machine:

1,     Wire feeding: Has four sets of feeding structure, increase the stroke, so that it can product the spring those diameter up to 4.2mm, to adapt to a wider range.

2,    Quill Servo Motor: this part is refinedly made of aluminum alloy, max speed is up to 3000 degrees per second (360 degrees in a circle as calculated) thus the rotation angle of the spindle less work without affecting the spindle speed. In addition to the core switch can be rotated so that space to complete some complex shapes, it can also be used to control the pitch of the spring, so the pitch can be done to simplify the transfer of digital control machine processes, thus reducing setup times.

3,    Servo motors Angular: Angular is a digital servo means to achieve freedom CORNER purposes. Computer-controlled bending angle can be changed at any time, without the need to adjust the mechanical parts, thereby reducing setup times, this bending system, the maximum speed within 0.017 seconds of the wire into 90-degree corners, and folded into 180 degrees only need 0.034 seconds! Also knuckle device can swing 25 degrees, convenient knuckle at certain angles inside.

4,   3-axis computer: three-axis synchronous computer system uses a high-precision servo motor and computer control, users simply use the computer program, you can easily create precise dimensions and angles complex spring, another computer choreographed programs can be stored and called. The system uses digital control, color Chinese / English interface, easy operation, saving setup times, this model can also be installed servo motor knuckle, used to produce more complex springs, such as German-style hook extension spring, wire forming and other complex products.
