Model Features:

1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase production efficiency.

2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and  right, more flexible  adjustment.

3. Taiwan helical gear reducer, the intensity more secure.

4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.

5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.


Technical parameters

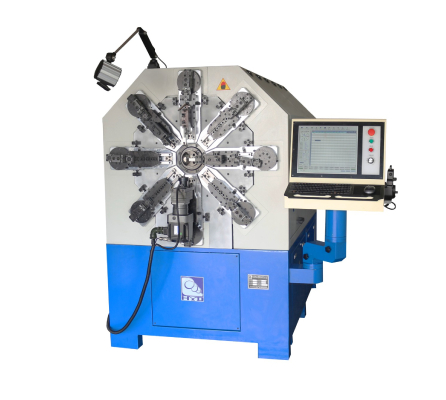

Model                                    HYD-40T-12A
Axis Count                            twelve axis
Wire Size Range                   low carbon steel:2-6mm     high-carbon steel:1-4mm
Lead rail                                distance of 100mm
Wire feeding count                4 pairs
Max Feeding speed              100m/min
Maximum error                     ±0.05mm(length)
Control system decoiler       1 sets
Servo motor power               27KW
Reducer                                11pcs
Minimum length of ange        4times wire diameter
Machine size                         1920*1200*1820mm
Machine  weight                    3000kg
